| Quantité: | |
|---|---|

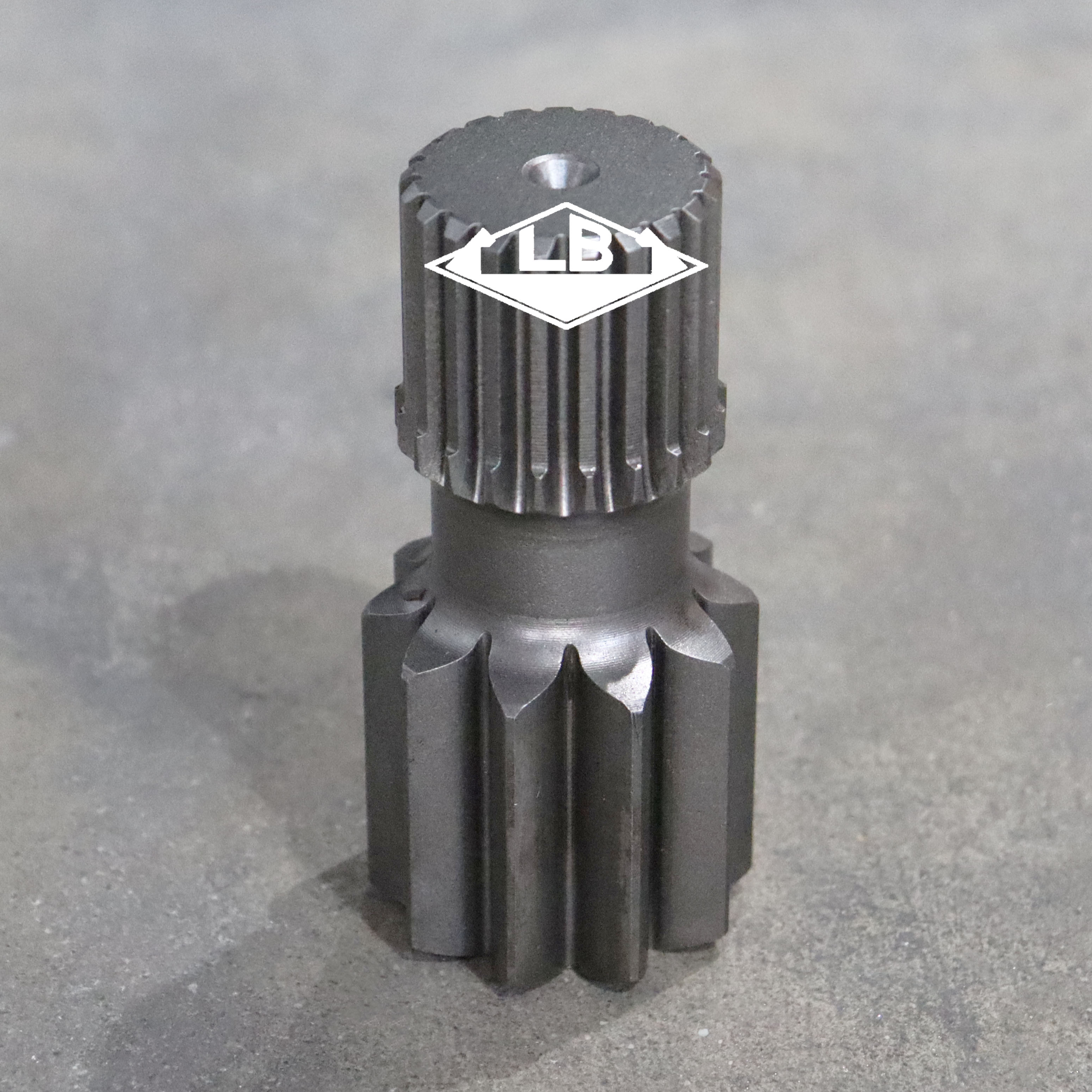

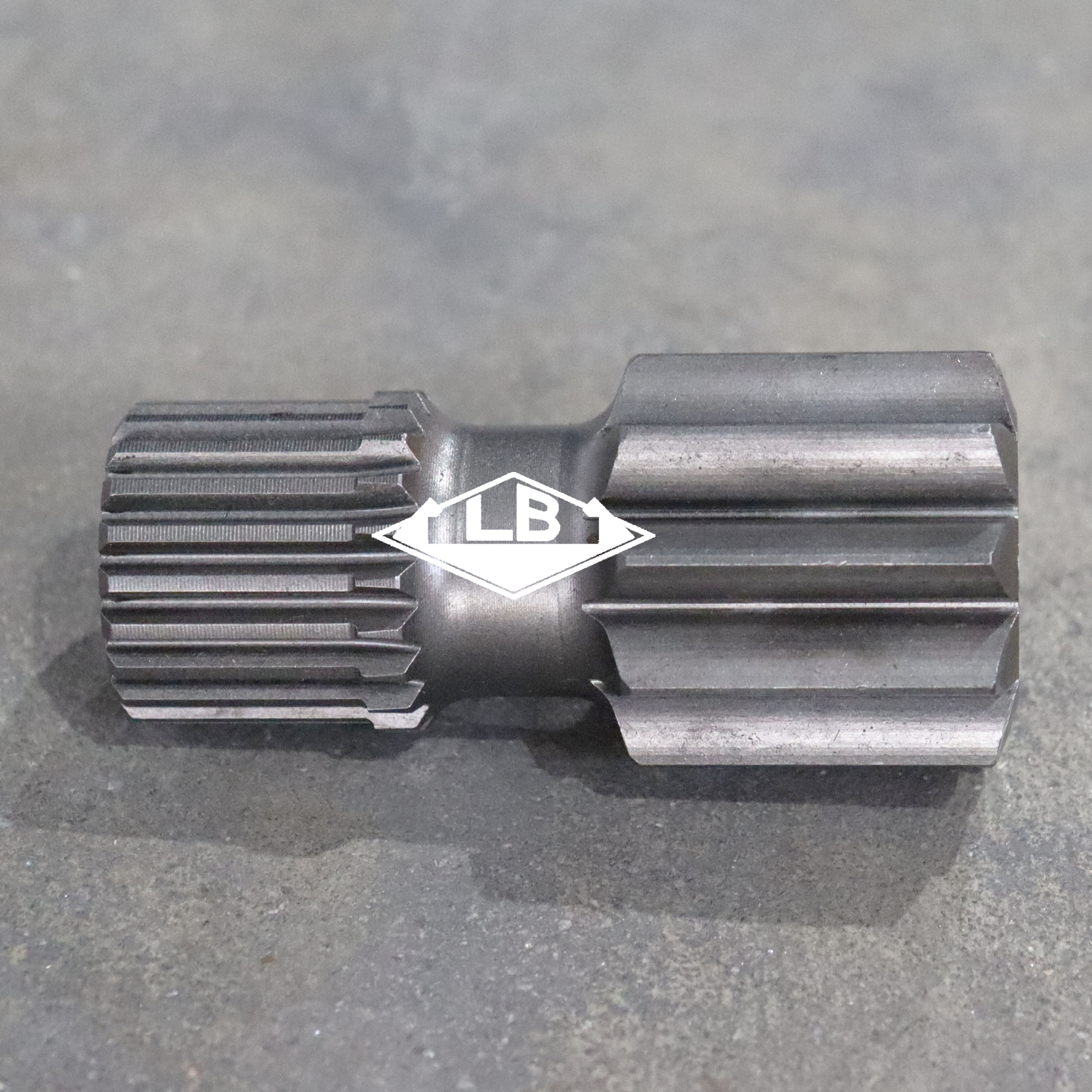

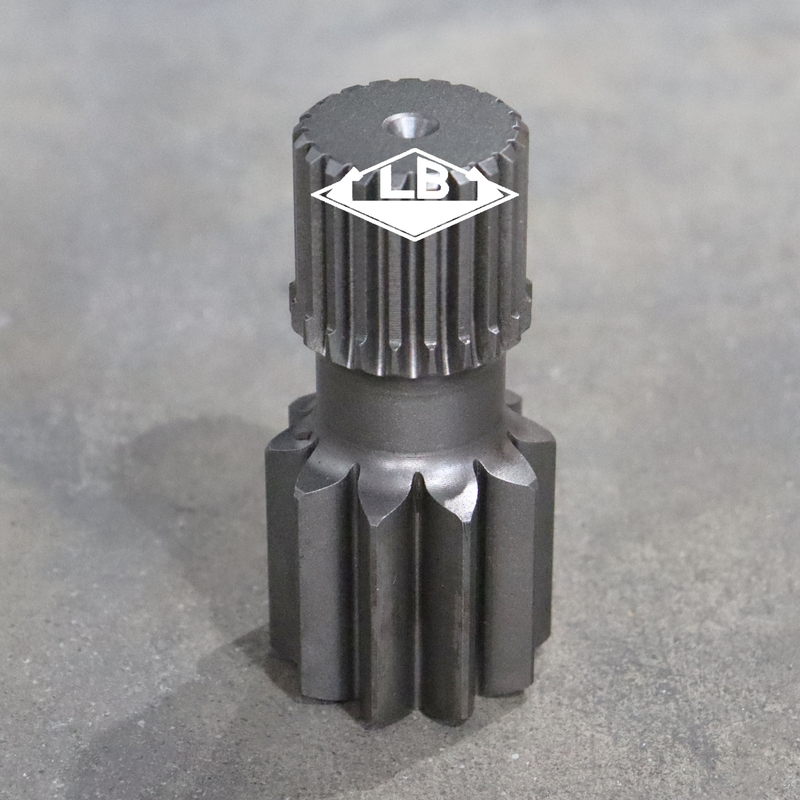

| P Nom d'art | R210-7 R215-9 Boîte de vitesses swing | |||||
| Équipement | Appliquer à Hyundai Excavator | |||||
| Partie no. | XKAQ-00242 XKAQ-00402 | |||||
| N ° 1 de dents splines de vitesse solaire | 18 splines | |||||
| Dents d'arbre de pignon swing | 13 T | |||||
| Condition d'article | Nouveau | |||||
| Logo | KG | |||||
| Poids brut | - | |||||
| MOQ | 1 pc | |||||

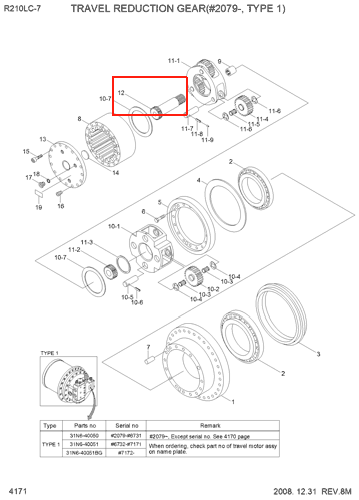

| Pos. | Partie No | Qty | Parts Nom | Commentaires |
|---|---|---|---|---|
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| * -2. | 31N6-40040 | [1] | T / réduction | |
| * -2. | 31N6-40041 | [1] | T / réduction | |
| * -2. | 31N6-40041BG | [1] | T / réduction | |
| * -2. | 31N6-40042 | [1] | T / réduction | |
| N1. | Xkaq-00217 | [1] | LOGEMENT | |
| 2 | Xkaq-00218 | [2] | Portant | |
| 3 et 3 | Xkaq-00219 | [1] | Flottant | |
| 4 | Xkaq-00220 | [1] | Cale | |
| 5 | Xkaq-00221 | [1] | Dispositif | |
| 6. | Xkaq-00222 | [12] | Se trémasser | |
| 7 | Xkaq-00223 | [2] | Épingle parallèle | |
| N8. | Xkaq-00224 | [1] | Anneau de vitesses | |
| 9. | Xkaq-00225 | [1] | COUPLAGE | |
| 9. | 39Q6-42170 | [1] | COUPLAGE | |
| 10 | Xkaq-00226 | [1] | Carrier 2 Assy | |
| 10-1. | Xkaq-00227 | [1] | Carrier 2 | Change |
| 10-2. | Xkaq-00228 | [4] | Gear-Livet 2 | Change |
| 10-3. | Xkaq-00229 | [8] | Port-aiguille 2 | |
| 10-4. | Xkaq-00230 | [8] | Laveuse | |
| 10-5. | Xkaq-00231 | [4] | PIN 2 | |
| 10-6. | Xkaq-00232 | [4] | Ressort de broche | |
| 10-7. | Xkaq-00208 | [2] | Braquer | |
| 11 | Xkaq-00233 | [1] | Carrier Assy 1 | |
| 11 | Xkaq-00653 | [1] | Carrier Assy 1 | |
| 11-1. | Xkaq-00234 | [1] | Carrier 1 | |
| 11-2. | Xkaq-00235 | [1] | Gear-Sun 2 | |
| 11-3. | Xkaq-00236 | [1] | Retenue | |
| 11-4. | Xkaq-00237 | [3] | Lignet de vitesses 1 | |
| 11-5. | Xkaq-00238 | [3] | Beigneng-needle 1 | |
| 11-6. | Xkaq-00239 | [6] | Laveuse | |
| 11-6. | Xkaq-00657 | [6] | Laveuse | |
| 11-7. | Xkaq-00240 | [3] | Broche 1 | |
| 11-8. | Xkaq-00241 | [3] | Ressort de broche | |
| 11-9. | Xkaq-00655 | [3] | Ressort de broche | |
| 12 | Xkaq-00242 | [1] | Gear-Sun 1 | |
| 12 | Xkaq-00402 | [1] | Gear-Sun 1 | |
| 12 | Xkaq-00795 | [1] | Gear-Sun 1 | |
| 13 | Xkaq-00243 | [1] | COUVERTURE | |
| 14 | Xkaq-00214 | [1] | TAMPON | |
| 15 | Xkaq-00244 | [20] | À berger | |
| 16 | Xkaq-00245 | [2] | Socket à vis | |
| 17 | Xkaq-00246 | [3] | Plug-hydraulique | |
| 18 | Xkaq-00247 | [3] | Joint torique | |
| 19. | Xkaq-00248 | [1] | Assiette | |
| N. | @ | [Ar] | Pièces non fournies |
| P Nom d'art | R210-7 R215-9 Boîte de vitesses swing | |||||
| Équipement | Appliquer à Hyundai Excavator | |||||
| Partie no. | XKAQ-00242 XKAQ-00402 | |||||
| N ° 1 de dents splines de vitesse solaire | 18 splines | |||||
| Dents d'arbre de pignon swing | 13 T | |||||
| Condition d'article | Nouveau | |||||
| Logo | KG | |||||
| Poids brut | - | |||||
| MOQ | 1 pc | |||||
| Pos. | Partie No | Qty | Parts Nom | Commentaires |
|---|---|---|---|---|
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| *. | @ | [1] | Voyage Motor Assy | Voir 4151 |
| * -2. | 31N6-40040 | [1] | T / réduction | |
| * -2. | 31N6-40041 | [1] | T / réduction | |
| * -2. | 31N6-40041BG | [1] | T / réduction | |
| * -2. | 31N6-40042 | [1] | T / réduction | |
| N1. | Xkaq-00217 | [1] | LOGEMENT | |
| 2 | Xkaq-00218 | [2] | Portant | |
| 3 et 3 | Xkaq-00219 | [1] | Flottant | |
| 4 | Xkaq-00220 | [1] | Cale | |
| 5 | Xkaq-00221 | [1] | Dispositif | |
| 6. | Xkaq-00222 | [12] | Se trémasser | |
| 7 | Xkaq-00223 | [2] | Épingle parallèle | |
| N8. | Xkaq-00224 | [1] | Anneau de vitesses | |
| 9. | Xkaq-00225 | [1] | COUPLAGE | |
| 9. | 39Q6-42170 | [1] | COUPLAGE | |
| 10 | Xkaq-00226 | [1] | Carrier 2 Assy | |
| 10-1. | Xkaq-00227 | [1] | Carrier 2 | Change |
| 10-2. | Xkaq-00228 | [4] | Gear-Livet 2 | Change |
| 10-3. | Xkaq-00229 | [8] | Port-aiguille 2 | |
| 10-4. | Xkaq-00230 | [8] | Laveuse | |
| 10-5. | Xkaq-00231 | [4] | PIN 2 | |
| 10-6. | Xkaq-00232 | [4] | Ressort de broche | |
| 10-7. | Xkaq-00208 | [2] | Braquer | |
| 11 | Xkaq-00233 | [1] | Carrier Assy 1 | |
| 11 | Xkaq-00653 | [1] | Carrier Assy 1 | |
| 11-1. | Xkaq-00234 | [1] | Carrier 1 | |
| 11-2. | Xkaq-00235 | [1] | Gear-Sun 2 | |
| 11-3. | Xkaq-00236 | [1] | Retenue | |
| 11-4. | Xkaq-00237 | [3] | Lignet de vitesses 1 | |
| 11-5. | Xkaq-00238 | [3] | Beigneng-needle 1 | |
| 11-6. | Xkaq-00239 | [6] | Laveuse | |
| 11-6. | Xkaq-00657 | [6] | Laveuse | |
| 11-7. | Xkaq-00240 | [3] | Broche 1 | |
| 11-8. | Xkaq-00241 | [3] | Ressort de broche | |
| 11-9. | Xkaq-00655 | [3] | Ressort de broche | |
| 12 | Xkaq-00242 | [1] | Gear-Sun 1 | |
| 12 | Xkaq-00402 | [1] | Gear-Sun 1 | |
| 12 | Xkaq-00795 | [1] | Gear-Sun 1 | |
| 13 | Xkaq-00243 | [1] | COUVERTURE | |
| 14 | Xkaq-00214 | [1] | TAMPON | |
| 15 | Xkaq-00244 | [20] | À berger | |
| 16 | Xkaq-00245 | [2] | Socket à vis | |
| 17 | Xkaq-00246 | [3] | Plug-hydraulique | |
| 18 | Xkaq-00247 | [3] | Joint torique | |
| 19. | Xkaq-00248 | [1] | Assiette | |
| N. | @ | [Ar] | Pièces non fournies |
