| Quantité: | |
|---|---|

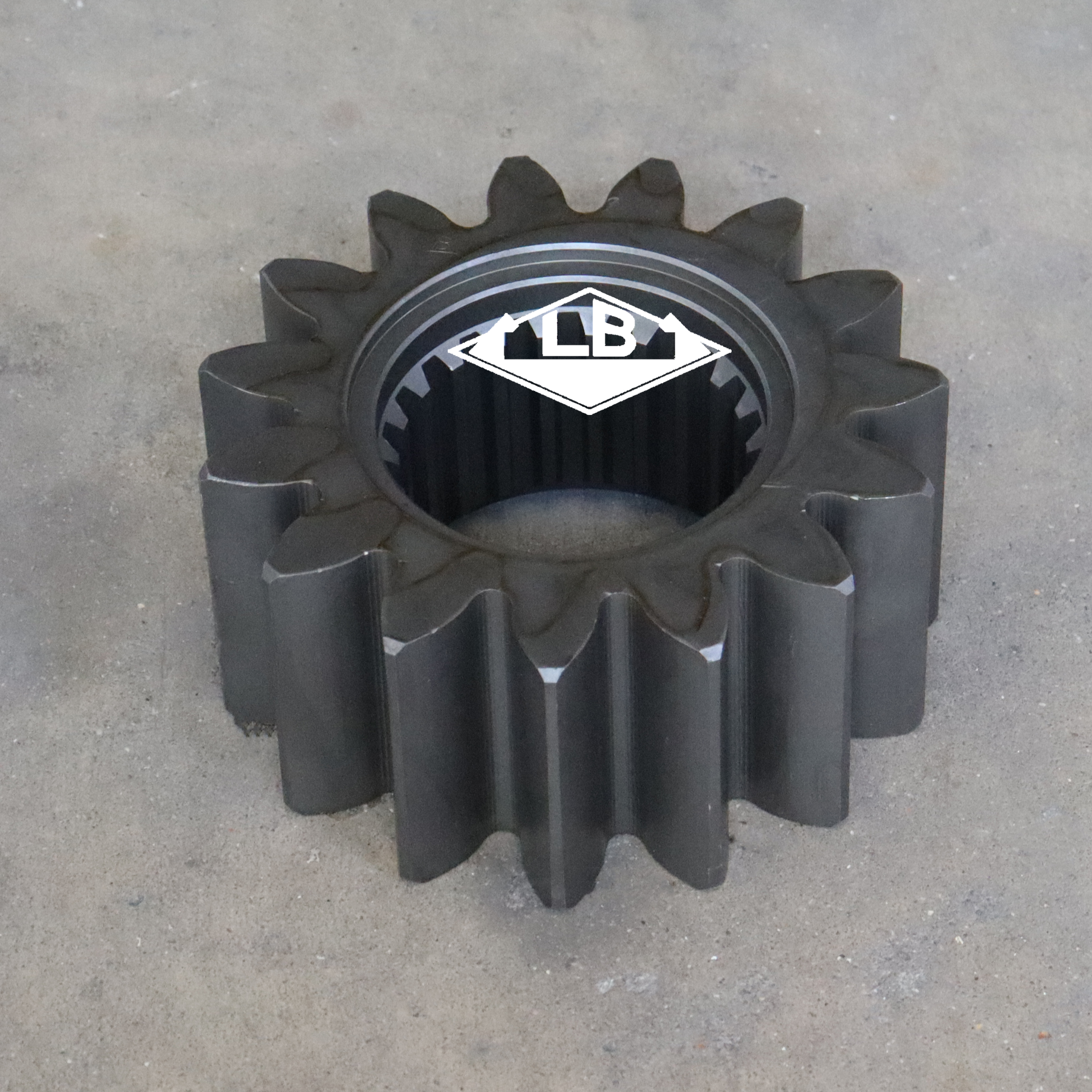

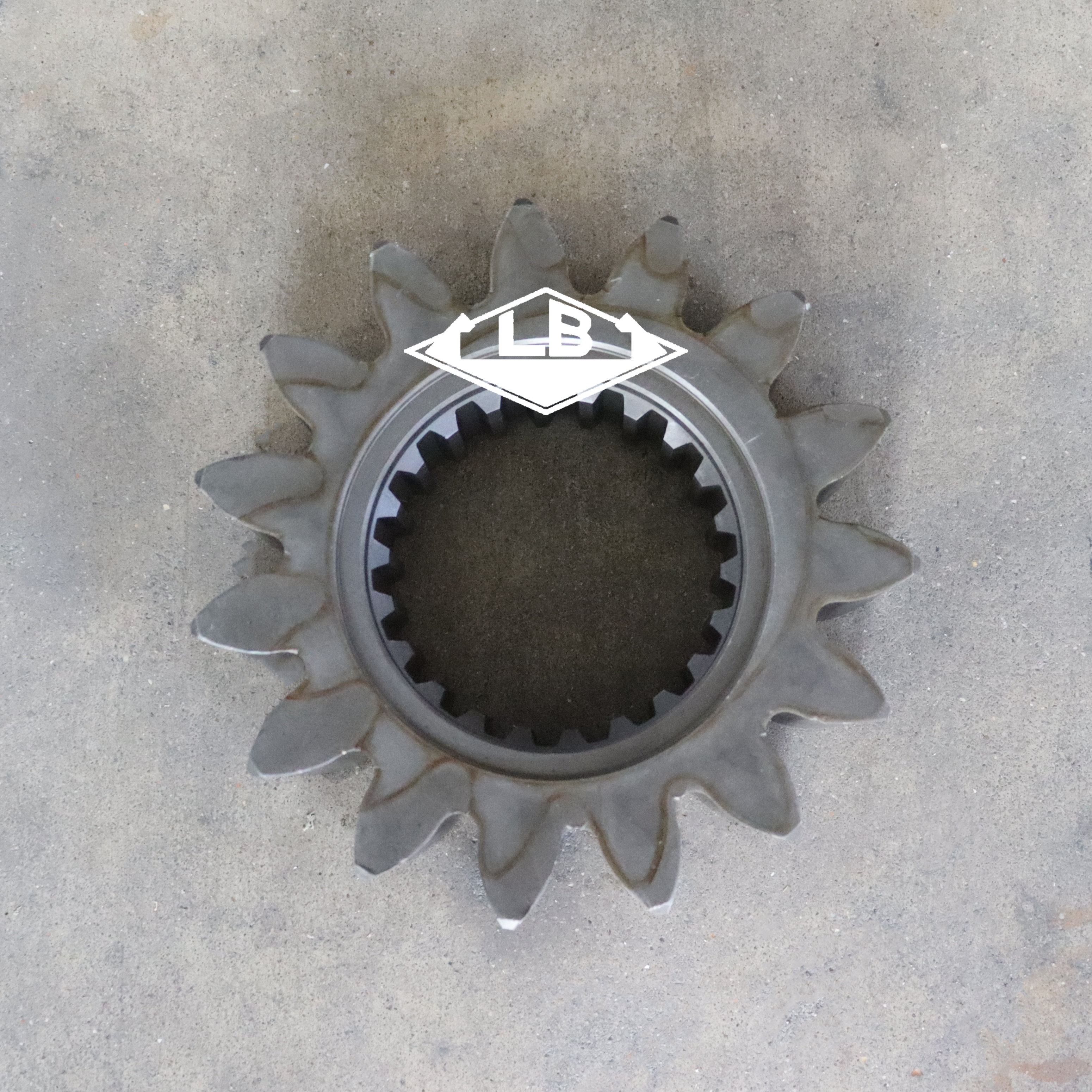

| P Nom d'art | R290LC-9 R300-9 R305-9 Boîte de vitesses swing | |||||
| Équipement | Appliquer à Hyundai Excavator | |||||
| Partie no. | Xkaq-00629 | |||||
| N ° 1 de dents splines de vitesse solaire | 18 splines | |||||
| Dents d'arbre de pignon swing | 13 T | |||||
| Condition d'article | Nouveau | |||||
| Logo | KG | |||||
| Poids brut | - | |||||
| MOQ | 1 pc | |||||

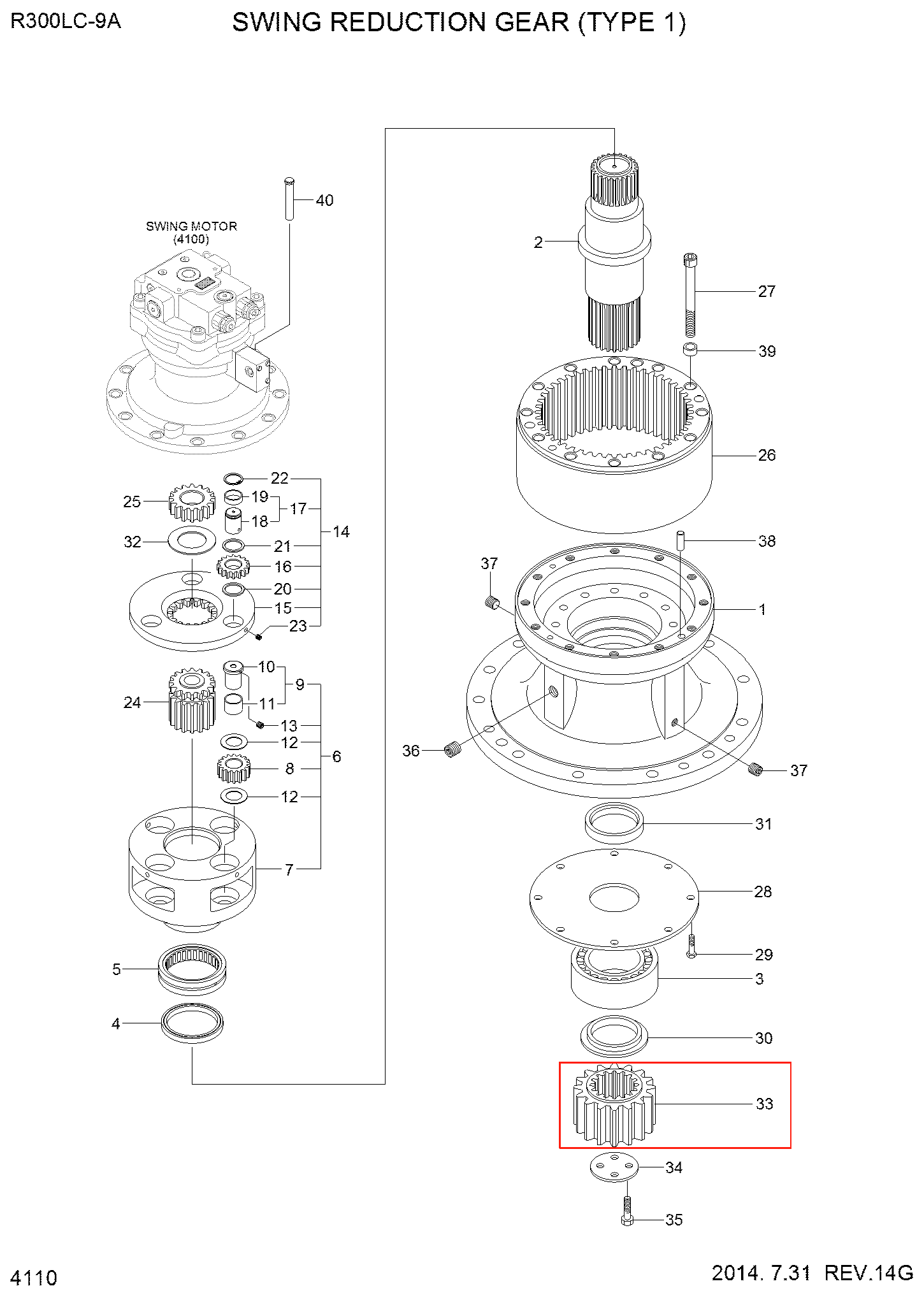

| Pos. | Partie No | Qty | Parts Nom | Commentaires |
|---|---|---|---|---|
| * -2. | 31Q8-11141 | [1] | Swing Reduction Gear | Voir 4100 |
| * -2. | 31q8-11141ar | [1] | Swing Reduction Gear | Voir 4100 |
| 1 et 1 | Xkaq-00451 | [1] | ENVELOPPE | |
| 2 | Xkaq-00760 | [1] | Arbre | |
| 3 et 3 | Xkaq-00146 | [1] | Rouler à rouler | |
| 4 | Xkaq-00149 | [1] | Sceau d'huile | |
| 5 | Xkaq-00027 | [1] | Rouler à rouler | |
| 6. | Xkaq-00467 | [1] | Carrier Assy 2 | |
| 7 | Xkaq-00468 | [1] | Carrier 2 | |
| 8 | Xkaq-00469 | [4] | Gear-Livet 2 | |
| 9. | Xkaq-00470 | [4] | Pin Assy 2 | |
| N10. | Xkaq-00471 | [1] | PIN 2 | |
| N11. | Xkaq-00472 | [1] | Bague 2 | |
| 12 | Xkaq-00435 | [8] | Laveuse | |
| 13 | Xkaq-00050 | [4] | Ressort de broche | |
| 14 | Xkaq-00473 | [1] | Carrier Assy 1 | |
| 15 | Xkaq-00453 | [1] | Carrier 1 | |
| 16 | Xkaq-00454 | [3] | Lignet de vitesses 1 | |
| 17 | Xkaq-00440 | [3] | Pin Assy 1 | |
| N18. | Xkaq-00441 | [3] | Broche 1 | |
| N19. | Xkaq-00079 | [3] | Bague 1 | |
| 20 | Xkaq-00417 | [3] | Plaque 1 à côte | |
| 21 | Xkaq-00416 | [3] | Plaque à 2 côtés | |
| 22 | Xkaq-00041 | [3] | Stop | |
| 23 | Xkaq-00048 | [3] | Ressort de broche | |
| 24 | Xkaq-00455 | [1] | Équipement de 2 ans | |
| 25 | Xkaq-00456 | [1] | Équipement 1-dim | |
| 26 | Xkaq-00457 | [1] | Rogne | |
| 27 | Xkaq-00466 | [12] | À berger | |
| 28 | Xkaq-00626 | [1] | Plaque de reprise | |
| 29 | Xkaq-00064 | [8] | Se trémasser | |
| 30 | Xkaq-00627 | [1] | SPACER | |
| 31 | Xkaq-00628 | [1] | Entrepôt de bague | |
| 32. | Xkaq-00447 | [1] | Plaque 3 | |
| 33. | Xkaq-00629 | [1] | Engin | |
| 34. | Xkaq-00761 | [1] | Verrouillage de plaque | |
| 35. | Xkaq-00756 | [4] | Se trémasser | |
| 36 | Xkaq-00049 | [1] | PRISE | |
| 37. | Xkaq-00066 | [2] | PRISE | |
| 38. | Xkaq-00072 | [2] | Coup de broche | |
| N39. | Xkaq-00631 | [4] | Bague 2 | |
| 40 | Xkaq-00800 | [1] | Assy Assy | |
| N. | @ | [Ar] | Pièces non fournies |
| P Nom d'art | R290LC-9 R300-9 R305-9 Boîte de vitesses swing | |||||
| Équipement | Appliquer à Hyundai Excavator | |||||
| Partie no. | Xkaq-00629 | |||||
| N ° 1 de dents splines de vitesse solaire | 18 splines | |||||
| Dents d'arbre de pignon swing | 13 T | |||||
| Condition d'article | Nouveau | |||||
| Logo | KG | |||||
| Poids brut | - | |||||
| MOQ | 1 pc | |||||
| Pos. | Partie No | Qty | Parts Nom | Commentaires |
|---|---|---|---|---|
| * -2. | 31Q8-11141 | [1] | Swing Reduction Gear | Voir 4100 |
| * -2. | 31q8-11141ar | [1] | Swing Reduction Gear | Voir 4100 |
| 1 et 1 | Xkaq-00451 | [1] | ENVELOPPE | |
| 2 | Xkaq-00760 | [1] | Arbre | |
| 3 et 3 | Xkaq-00146 | [1] | Rouler à rouler | |
| 4 | Xkaq-00149 | [1] | Sceau d'huile | |
| 5 | Xkaq-00027 | [1] | Rouler à rouler | |
| 6. | Xkaq-00467 | [1] | Carrier Assy 2 | |
| 7 | Xkaq-00468 | [1] | Carrier 2 | |
| 8 | Xkaq-00469 | [4] | Gear-Livet 2 | |
| 9. | Xkaq-00470 | [4] | Pin Assy 2 | |
| N10. | Xkaq-00471 | [1] | PIN 2 | |
| N11. | Xkaq-00472 | [1] | Bague 2 | |
| 12 | Xkaq-00435 | [8] | Laveuse | |
| 13 | Xkaq-00050 | [4] | Ressort de broche | |
| 14 | Xkaq-00473 | [1] | Carrier Assy 1 | |
| 15 | Xkaq-00453 | [1] | Carrier 1 | |
| 16 | Xkaq-00454 | [3] | Lignet de vitesses 1 | |
| 17 | Xkaq-00440 | [3] | Pin Assy 1 | |
| N18. | Xkaq-00441 | [3] | Broche 1 | |
| N19. | Xkaq-00079 | [3] | Bague 1 | |
| 20 | Xkaq-00417 | [3] | Plaque 1 à côte | |
| 21 | Xkaq-00416 | [3] | Plaque à 2 côtés | |
| 22 | Xkaq-00041 | [3] | Stop | |
| 23 | Xkaq-00048 | [3] | Ressort de broche | |
| 24 | Xkaq-00455 | [1] | Équipement de 2 ans | |
| 25 | Xkaq-00456 | [1] | Équipement 1-dim | |
| 26 | Xkaq-00457 | [1] | Rogne | |
| 27 | Xkaq-00466 | [12] | À berger | |
| 28 | Xkaq-00626 | [1] | Plaque de reprise | |
| 29 | Xkaq-00064 | [8] | Se trémasser | |
| 30 | Xkaq-00627 | [1] | SPACER | |
| 31 | Xkaq-00628 | [1] | Entrepôt de bague | |
| 32. | Xkaq-00447 | [1] | Plaque 3 | |
| 33. | Xkaq-00629 | [1] | Engin | |
| 34. | Xkaq-00761 | [1] | Verrouillage de plaque | |
| 35. | Xkaq-00756 | [4] | Se trémasser | |
| 36 | Xkaq-00049 | [1] | PRISE | |
| 37. | Xkaq-00066 | [2] | PRISE | |
| 38. | Xkaq-00072 | [2] | Coup de broche | |
| N39. | Xkaq-00631 | [4] | Bague 2 | |
| 40 | Xkaq-00800 | [1] | Assy Assy | |
| N. | @ | [Ar] | Pièces non fournies |
